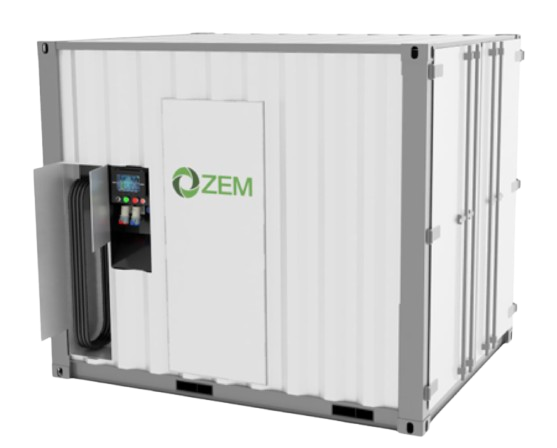

10 ft Powerbank Container

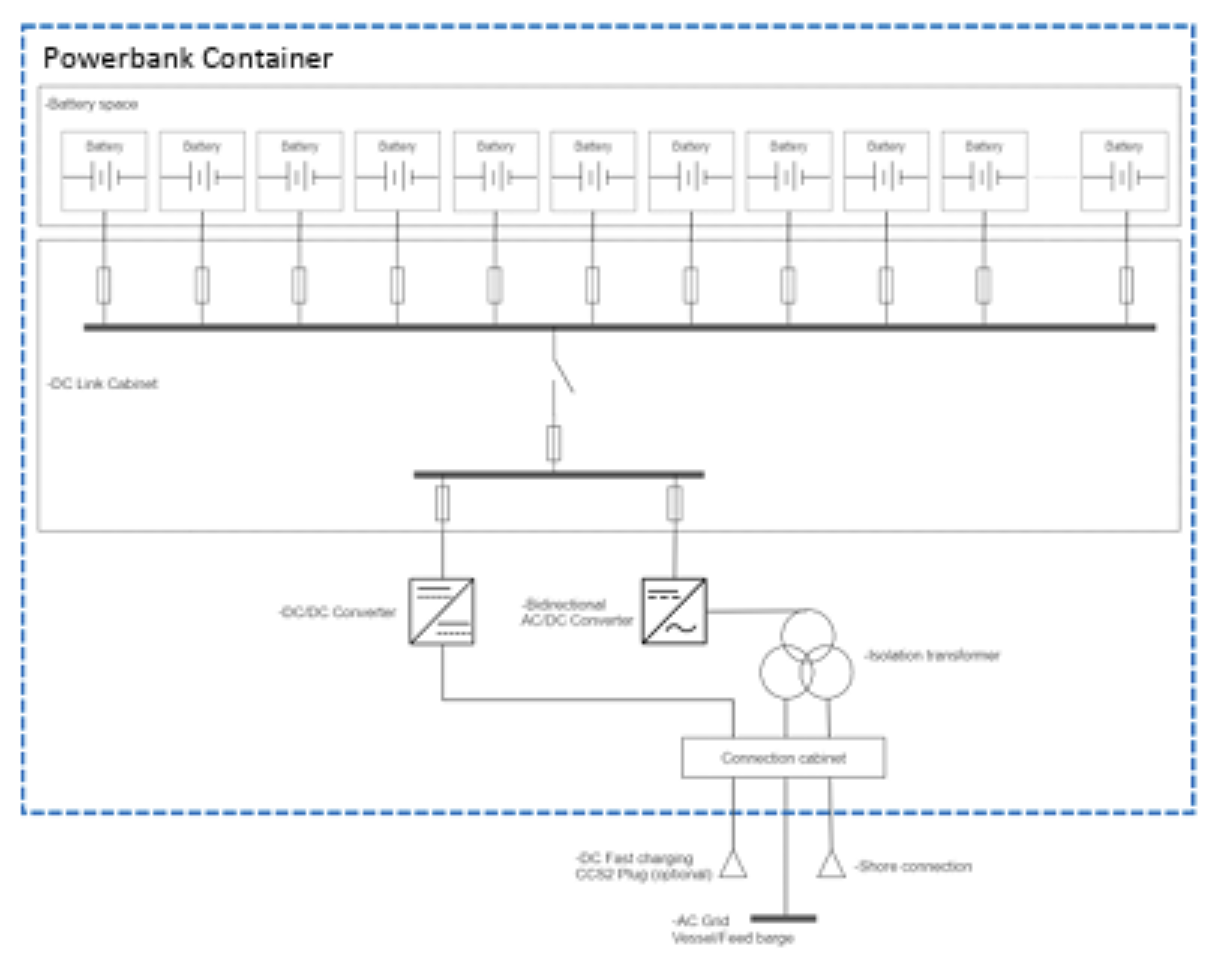

150-564kWh Battery system consisting of:
Akasol batteries - Voltage range 543 - 756 V
Control cabinet with PLC based battery interface. Remote access to the PLC is implemented for maintenance, diagnostics and data logging purposes
DC link cabinet with 750V DC bus and fuses
9”HMI screen
100-350 kW CCS2 DC charging
Connection cabinet
50-100 kW 400Vac 3 phase Charger for the battery system
50-100 kW 400Vac 3 phase Supply
Transformer
10 ft insulated Container with integrated cooling system
Fire and temp sensor for the battery space
Gas evacuation and Fire extinguishing system
