Electrical energy storage and Grid systems

Powerbank for peak shaving and fast charging applications.​ Ideal for Aquaculture feed barges and construction sites.

  • Land based system and Marine based

  • All designed to DNV Marine requirements for safety

  • Battery agnostics

  • Flatpack and Cubic

  • Iron and Nickel based chemistries (use dependent)

  • Energy content from 188 kWh to 1500 MWh

  • Approval DNV, Bureau Veritas or CE

  • Fully integrated and standalone - retrofittable

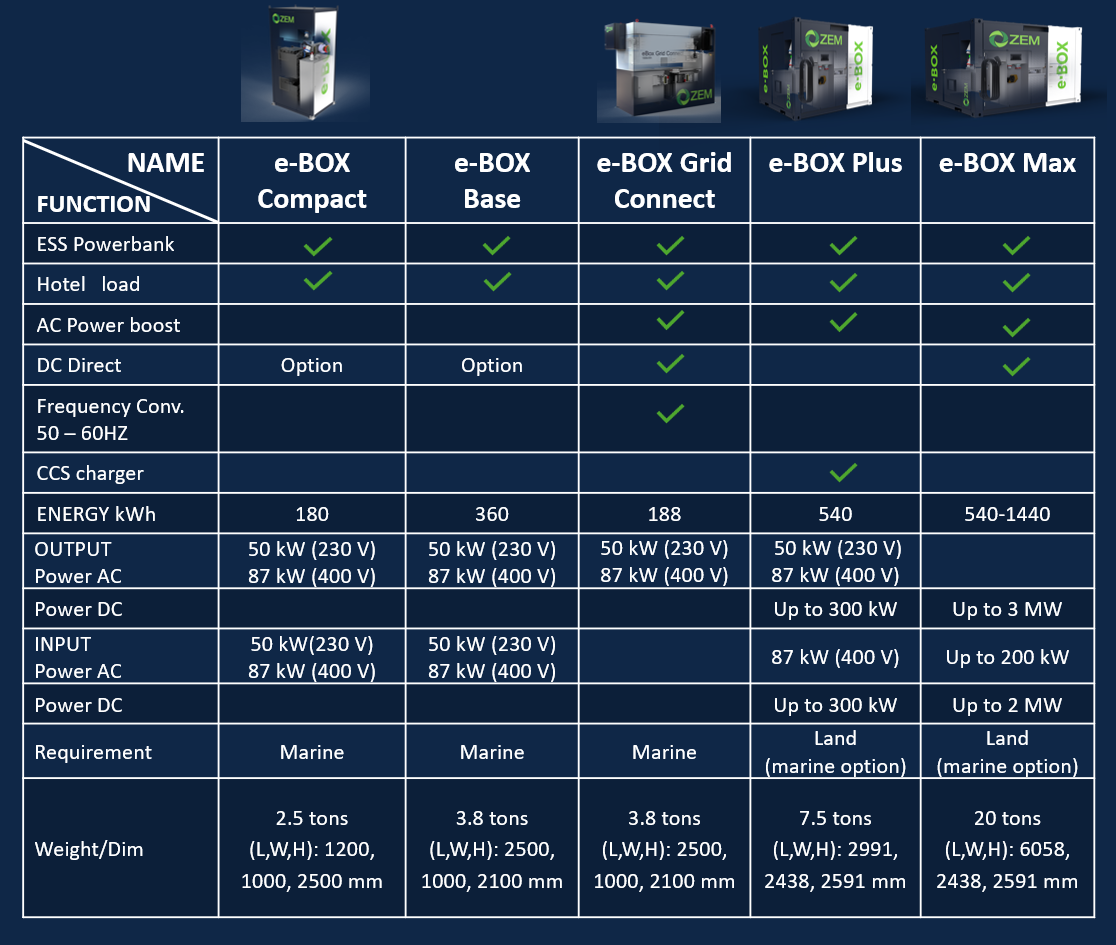

Our EES and Grid Systems

e-BOX

v

ESS Powerbank

180 kWh

Energy

50 kW (230 V)
87 kW (400 V)

Output Power AC

-

Output Power DC

50 kW(230 V)
87 kW (400 V)

Input Power AC

-

Input Power DC

e-BOX +

v

188 kWh

      130 kW (400 V)

-

-

3.8 tonnes​
(L,W,H): 2500, 1000, 2100 mm​

Weight/Dim

Note: When viewed on your mobile, the table works best in landscape mode

e-BOX MAX

v

540 kWh

50 kW (230 V)
87 kW (400 V)

Up to 300 kW

7.5 tonnes​
(L,W,H): 2991, 2438, 2591 mm​

Up to 300 kW

130 kW (400 V)

2.5 tonnes​
(L,W,H): 1200, 1000, 2500 mm​

87 kW (400 V)

e-BOX MAX +

v

< 3MW

-

Up to 3 MW

20 tonnes​
(L,W,H): 6058, 2438, 2591 mm​

Up to 2 MW

Up to 200 kW

v

Powering hotel load

v

v

v

-

AC Power boost

v

v

v

-

Frequency Conv. 50 – 60HZ

v

-

-

-

CCS Charger

-

v

v

-

Direct DC

-

-

-

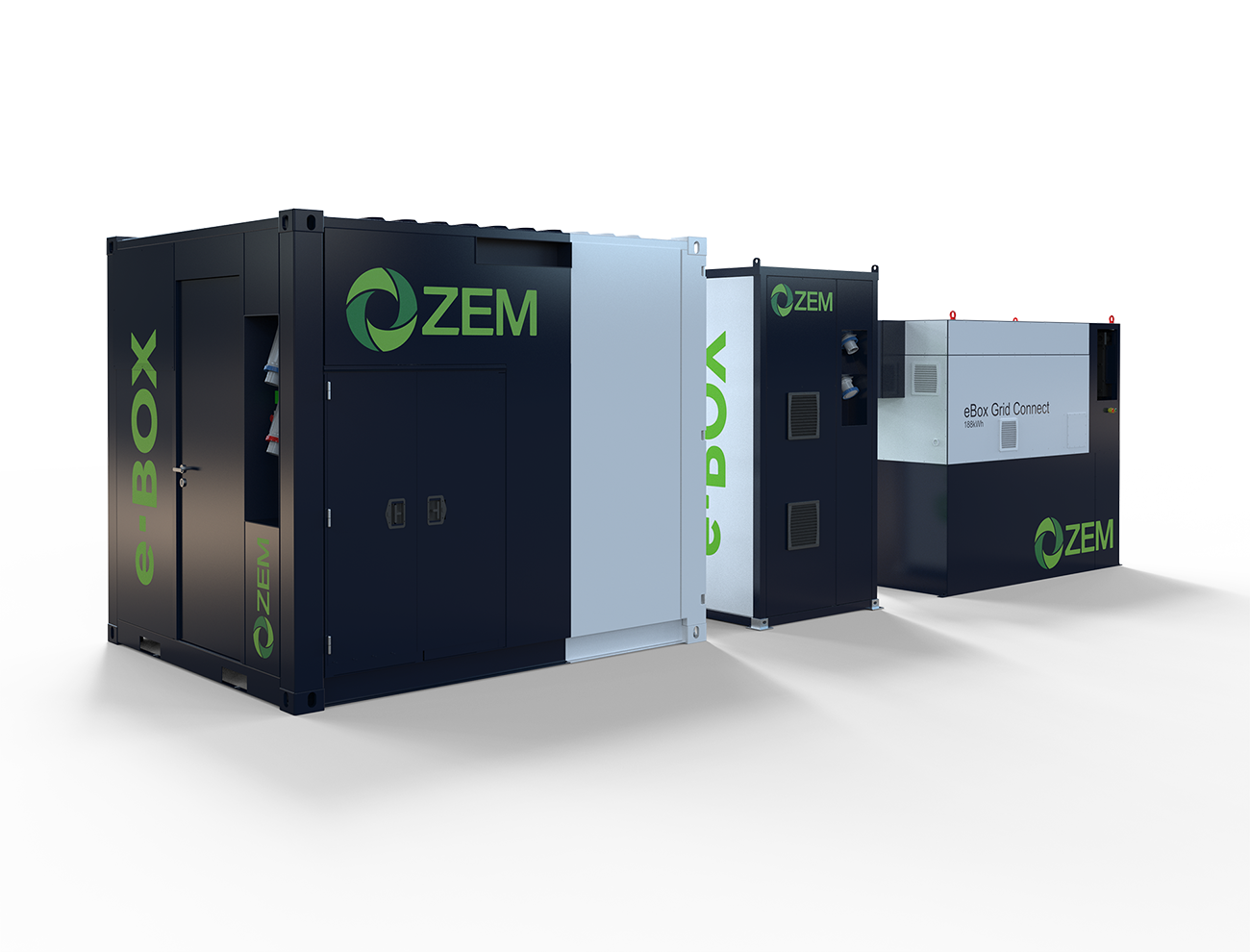

ZEM e-BOX – A Smart Retrofit Battery Solution for Workboats

The ZEM e-BOX is an innovative battery solution designed to transform diesel-powered workboats into efficient electric hybrids. By reducing engine idling, fuel consumption, and CO₂ emissions, the e-BOX provides a cost-effective and sustainable upgrade for maritime operations.

Key Features

  • DNV Type-Approved: Ensuring safety and compliance for marine installations.

  • Plug-and-Play Retrofit: Easily integrates with existing diesel engines to enable hybrid operation.

  • Scalable Energy Storage: Available in 90 kWh and 180 kWh configurations, with the option to install multiple units for additional capacity.

  • Outdoor-Ready Design: Engineered for robust, deck-mounted installation.

  • Reduced Environmental Impact: Cuts CO₂ emissions by up to 100 tons per year per workboat.

  • Lower Fuel Costs: Saves between 20,000 – 40,000 liters of diesel annually.

  • Improved Work Environment: Reduces exhaust, noise, and vibrations for a cleaner and more comfortable workplace.
